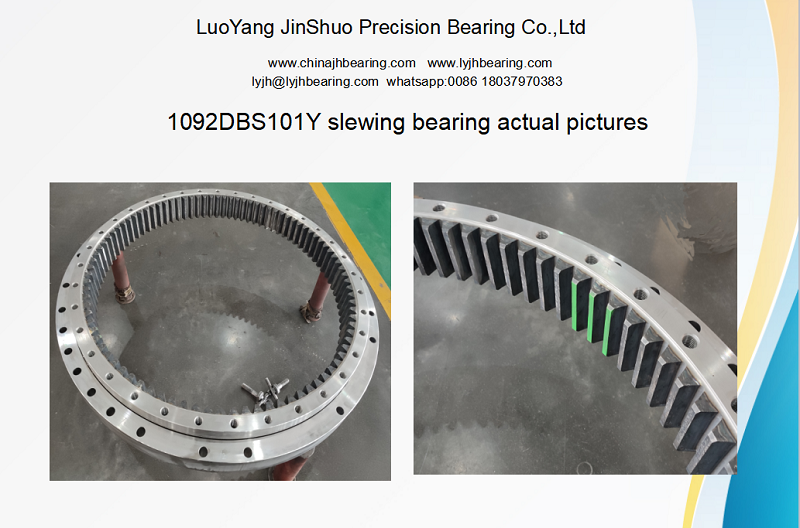

1092DBS101Y slewing bearing ring 1358x1092x125mm internal teeth
Slewing bearing 1092DBS101y are widely used for constructions and industrial chineries,such as drive shovels,crane vehichles Bearing code 1092DBS101y belongs to four point contact ball slewing bearing with internal teeth.It including the inner ring with teeth, outer ring and ball elements.
Slewing bearing type | 1092DBS101Y with internal teeth |
Bearing teeth shape | Spur teeth shape |
Bearing code : | 1092dby101y |
Size | 1358x1092x125mm |
Outer dia： | 1358 mm(53.465 inch size) |
Inner dia： | 1092mm(42.992 inch size) |
Height： | 125 mm(4.921 inch size) |
Weight | 165Kgs |
Outer ring hole distribute | Not equally distribute space |
Inner ring hole distribute | equal distribute space |
Outer ring and inner ring material | 42CrMo,50Mn |
Rolling elements | ball |
Lubrication type | Grease lubrication |
Module m | M=12 |
Teeth number | 92PCS |
Press angle | 20 degree |
Teeth | Innternal teeth |
drive | By pinion gear teeth |
Service | Offer assembly drawing and technology knowledge |
