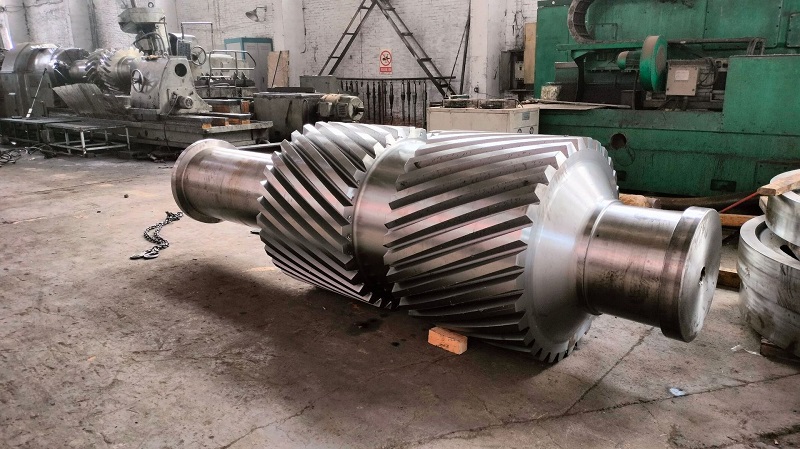

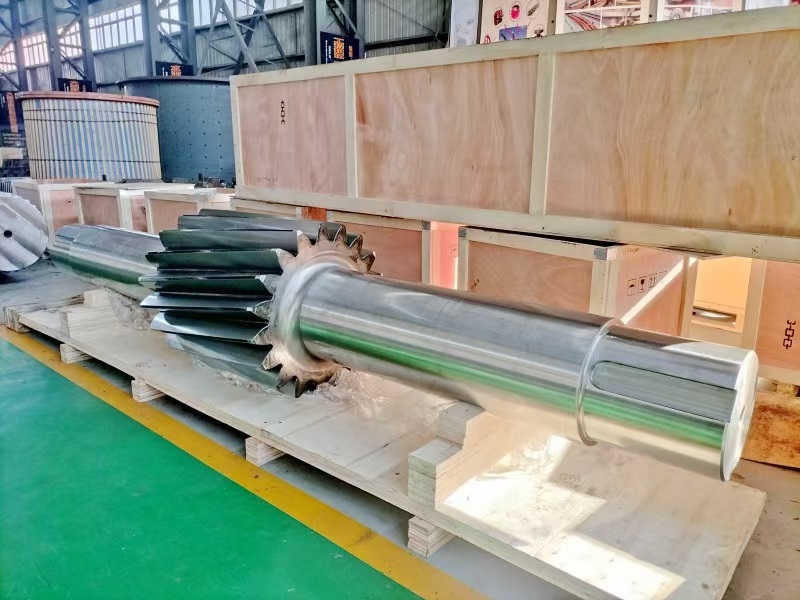

Ball mill equipment use left hand helical shaft gear pinion
Shaft structure: Shaft gear with keyway
Length:3340mm
Diameter:290mm
Quality standard: Standard DIN JIS ASTM GB
Processing: Forging-Milling-Grinding Teeth
Raw Material 42CrMo, 20CrMnTi, 20CrNiMo, 20CrMnMo
Application: Rolling Mill,ball mill
Teeth shape:helical gear
Teeth Direction:left
Angle :25 degree press angle
Teeth number:21pcs
Service OEM/ODM
Delivery Time:100 days
Package: Wooden Case
The gear shaft of the ball mill transmits power to the grinding cylinder through gear transmission to achieve material crushing. Its working principle includes:
1. Gear meshing transmits power
2. Bearing supports rotation
3. Grinding media in the grinding drum crushes the material
