Bearing 527466 for high speed cable wire Tubular Strander machine
Details parameter and installation dimensions:
The bearing items:527466
The bearing structure: cylindrical roller bearing
Roller Rows number:single row
Inner diameter:standard size
Outer diameter:standard size
Width:standard size
Basic load rating:
Cr:1250KN
Cor:2650KN
Limited speed:700RPM
Cage material:Brass
Ring material:GCr15SiMn
Clearance:C0 C3 Gruop
Precision grade:P5 P6 Grade
The manufacture time:60 days

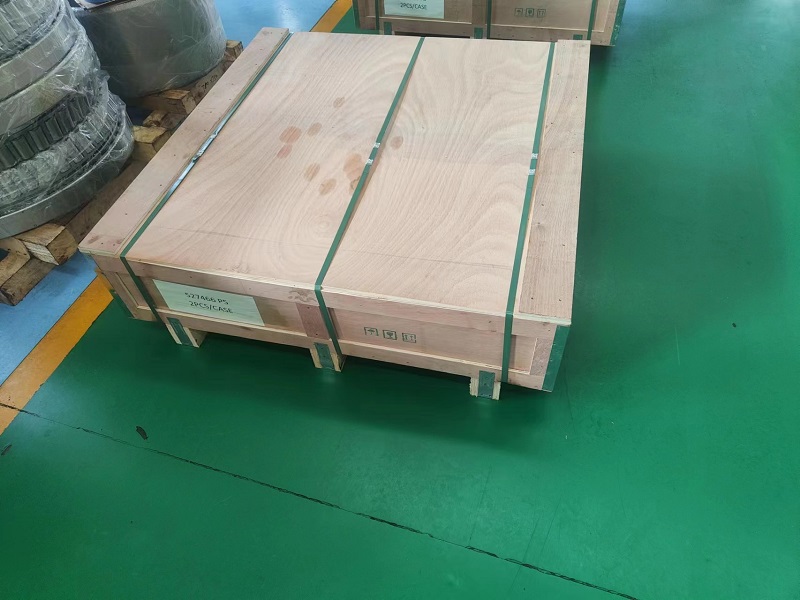

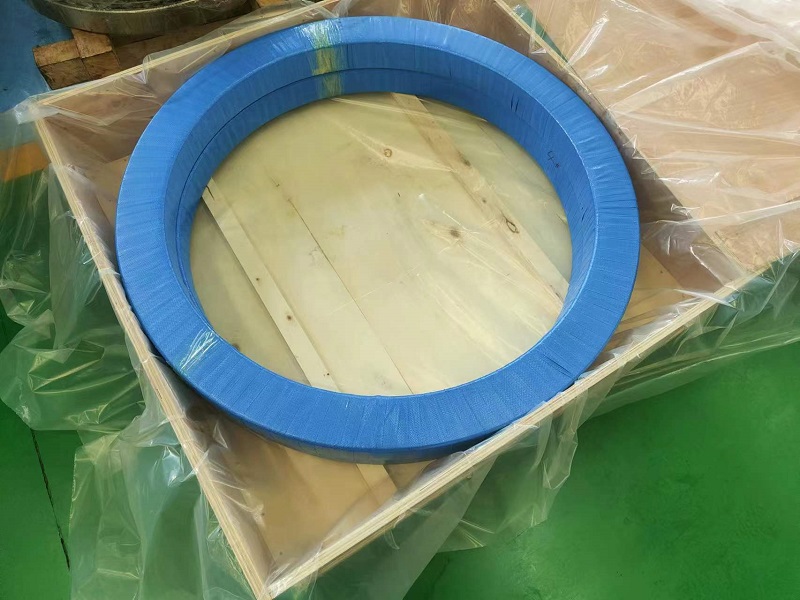

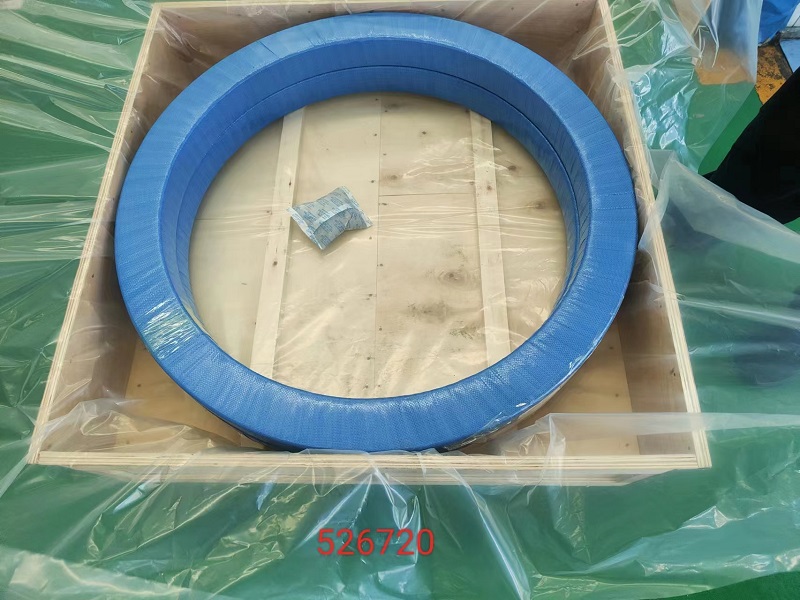

The bearing package:wooden case
The bearing HS code:8482500090
The bearing shipping term:By sea or by air
The bearing application:Special Cylindrical Roller Bearings 527466 have a lubrication groove and three lubrication holes in the outer ring. The robust solid brass cage is guided on the inner ring.The bearings 527466 are separable and are therefore easier to mount and dismount. As a result, both bearing rings can be given a tight fit. Single row cylindrical roller bearings with cage are available as non-locating, semi-locating and locating bearings.
