Cylindrical Spur Gear pinion teeth number 19pcs press angle 20 degree
Pinion gear teeth details as following:
Milled teeth.
Tooth quality 998GK/GBT10095
Pressure angle 20°
Module:12.7
Material Steel (42CrMo)
Outer diameter:266.7mm
Inner diameter:88.83mm
Total height:158mm
Keyway:yes
Tooth quality 8
Surface Black
Hardened:Yes
Hub Without
Bore diameter:3.5 inch size
Outside diameter:10.5 inch size
Total width:6.25 inch size

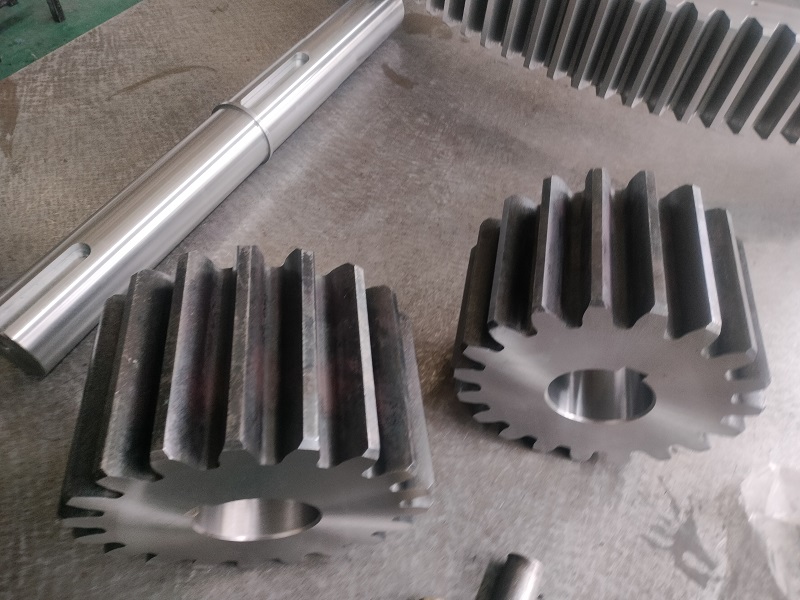

Pinion Gear Teeth actual picture:
The Pinion gear teeth function as following:
The main functions of gears include transmitting power and motion, changing rotation speed and torque, changing rotation direction, achieving long-distance transmission, smooth transmission and buffering and vibration reduction, precise transmission, and realizing various forms of motion.
Transmitting power and motion: Gears can transmit the power and motion of one gear to another gear through meshing with each other, driving the work of the entire mechanical system.
Change the rotation speed and torque: Through the combination of gears of different sizes, the rotation speed can be increased or decreased and the torque can be transformed. The large gear drives the small gear to increase speed and reduce torque, and the small gear drives the large gear to reduce speed and increase torque.
