Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox

Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox
  • Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox
  • Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox
  • Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox
  • Name:Gear Shaft
  • Teeth shape:helix gear
  • Total length:1600mm
  • Teeth number:26PCS
  • Material:42CrMo, 20CrMn, 20CrNiMo,18CrNiMo
  • Heat treatment:Queching and Tempering
Inquiry Now

Length 1600mm Cylindrical Helical Gear Shaft Module 20 for gearbox


LJHB offer the gear teeth shaft with spur or helix angle teeth.Gear shaft refers to a mechanical part that supports rotating parts and rotates with them to transmit motion, torque or bending moment. It is generally in the shape of a metal round rod, and each section can have a different diameter. The parts that perform rotary motion in the machine are mounted on the shaft.



The shaft gear details as following:

Product name:shaft gear teeth

Length:1600mm

Outer diameter:625mm

Module:20

No of teeth:25pcs

Pressure angle:20 degree

Raw Material: 42CrMo, 20CrMnTi, 20CrNiMo,18CrNiMo or other required available

Heat treatment: HR58-62

Tooth shape:spur gear shape

Quality standard:according to approved drawing

Service:discuss with the gear shaft application and design the drawing.

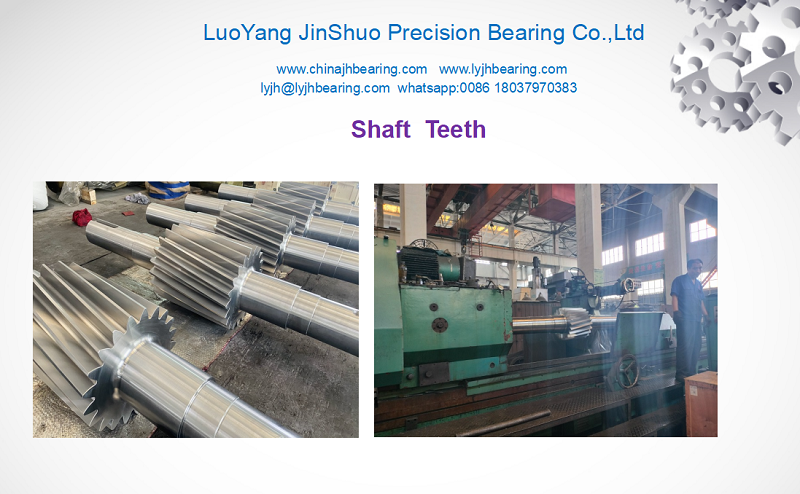

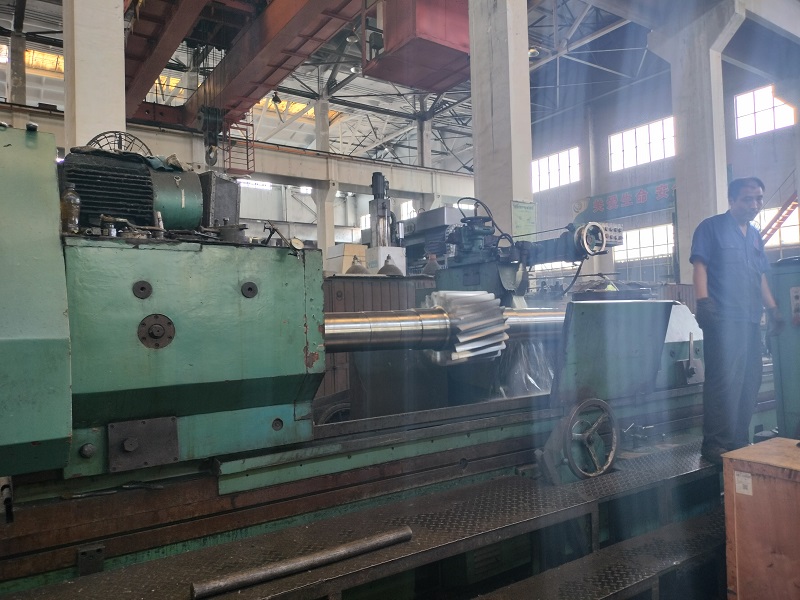

The shaf gear actual picture please reference :

shaft with teeth gear.jpg
