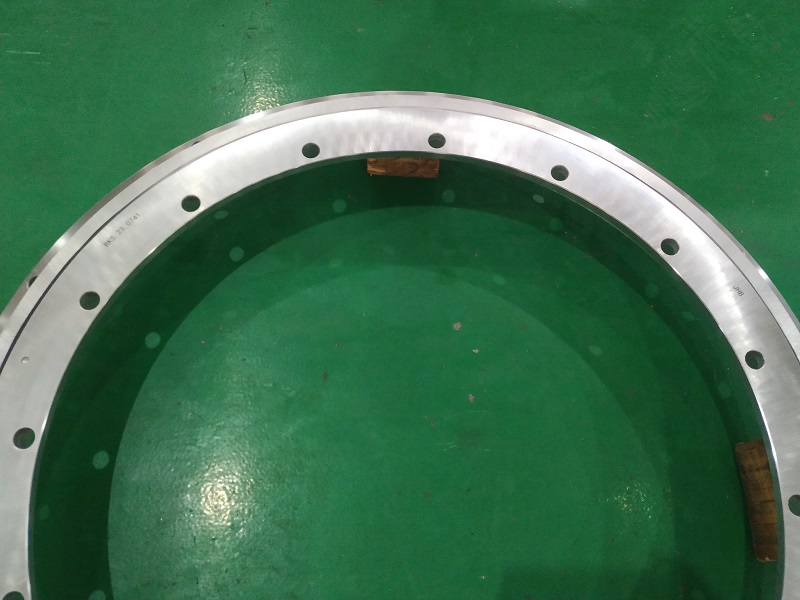

RKS.23.0741 slewing bearing with flange 848x634x56mm
RKS.23.0741 bearing belongs to light series four-point contact ball slewing bearings without a gear.The inner ring and outer ring with the flange. They mainly use aerial work platforms, robotics,industrial positioners, turntables and some material handling equipment.
Light series single row four-point contact ball slewing bearings can be operated at circumferential speeds up to 2 m/s.
Bearing type | RKS.23.0741 |
Bearing structure | Thin section four point contact ball slewing bearing with flange |
Bearing boundary | 848*634*56mm |
Outer dia: | 848mm |
Inner dia: | 634mm |
Height: | 56mm |
Weight: | 43KGS |
HS Code | 8482109000 |
Teeth | Without teeth |
Basic load ratings | C=211KN,C0=524KN |
Rolling | ball |
Package | Wooden case |
structure | Four point contact ball |
Ring material | 42CrMo,50Mn |
Ball material | GCr15 |
SEAL material | Rubber Sealed On Both Sides |
