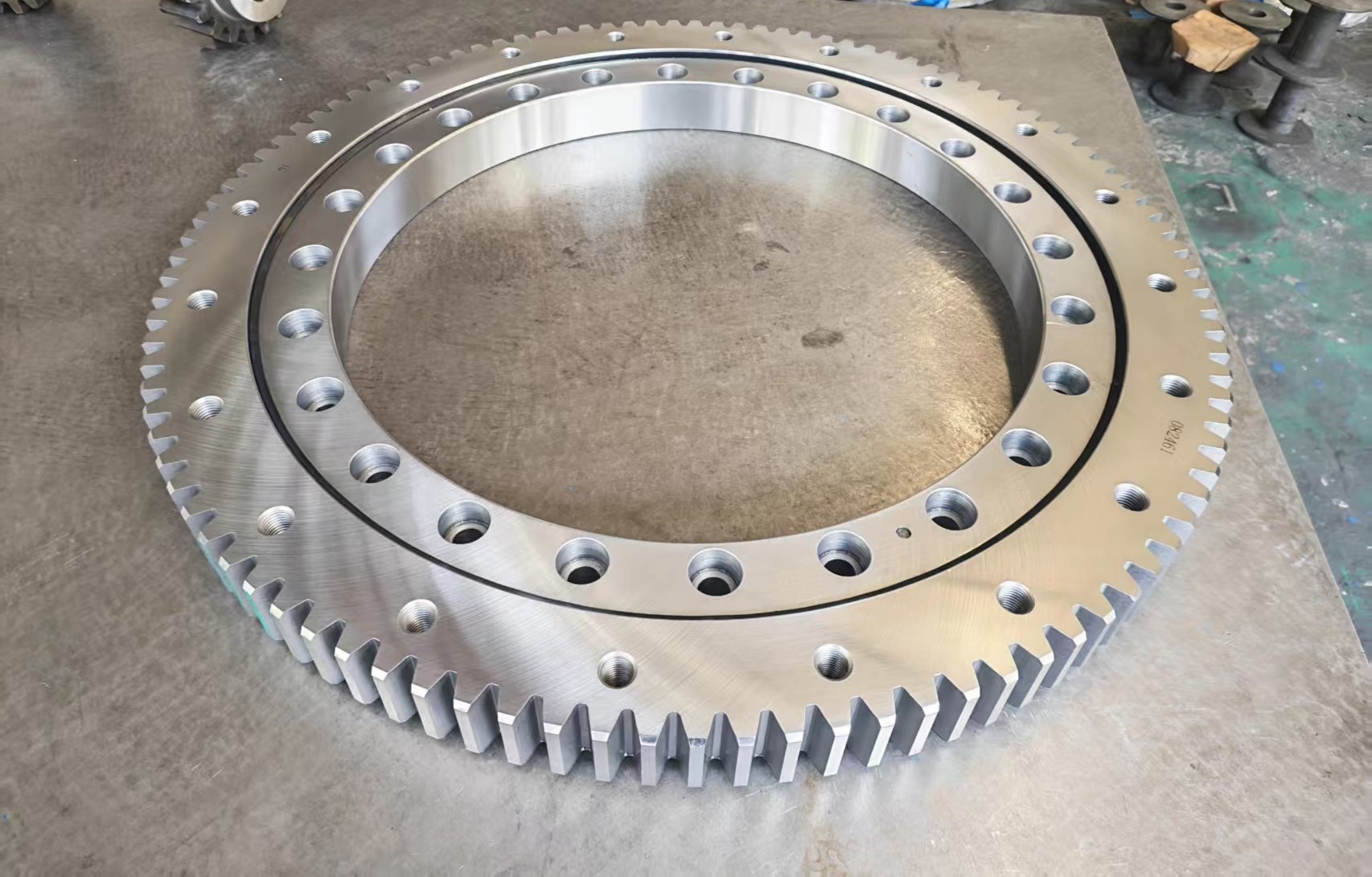

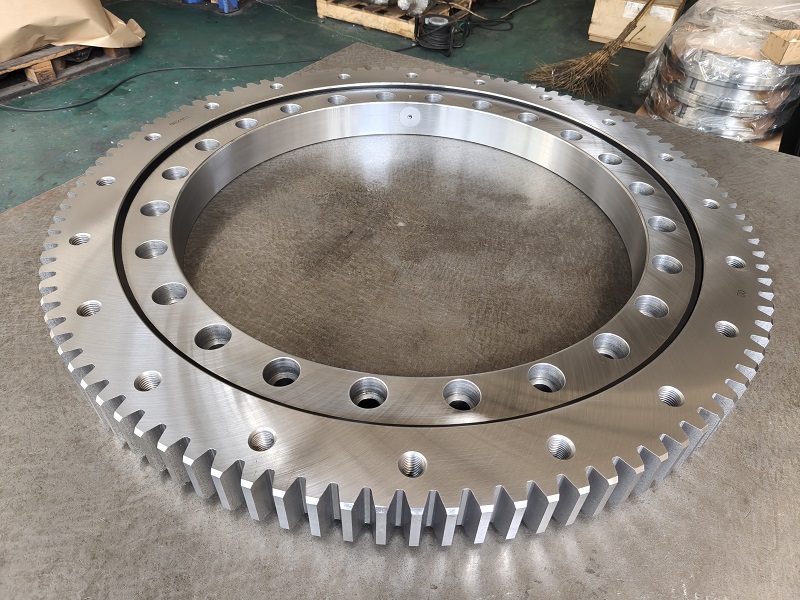

Slewing Ball bearing with external teeth STE-730 In stock

Product name:Turntable bearing,slewing bearing

Bearing item:STE-730, ste-730

Structure:Four point contact ball slewing bearing

The bearing boundary inch dimension:41.85 x28.75x3.25”

The outside dia (D):41.85”

The inside diameter(d):28.75”

The width（W）:3.25”

The bearing material:steel 42CrMo or equal steel material

Lubrication: grease lubrication

Metric Full size:1062x730x82.5mm

The outer diameter:1062mm

The inner diameter:730mm

The height :82.5mm

Teeth shape:spur teeth

The teeth No.:103pcs

Pressure angle:20 degree

Service:offer the bearing drawing

Axial clearance:C3 group

Package:wooden case
