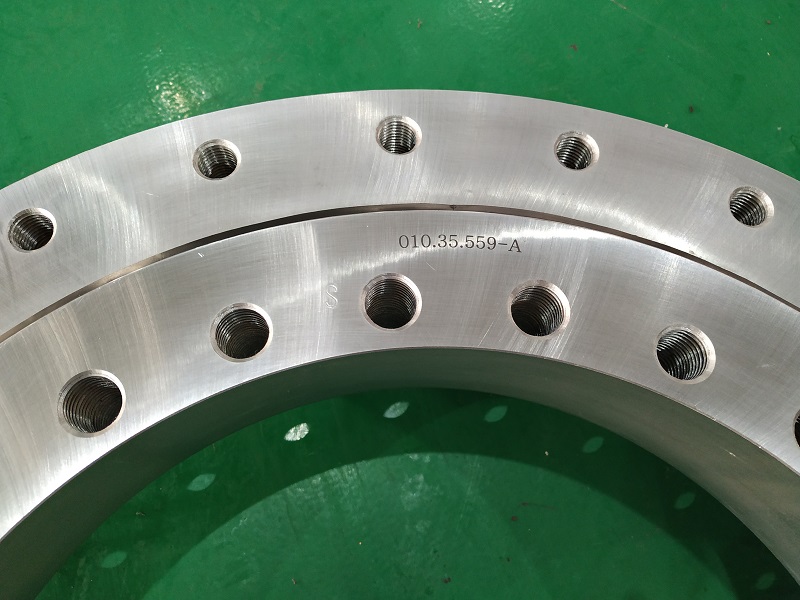

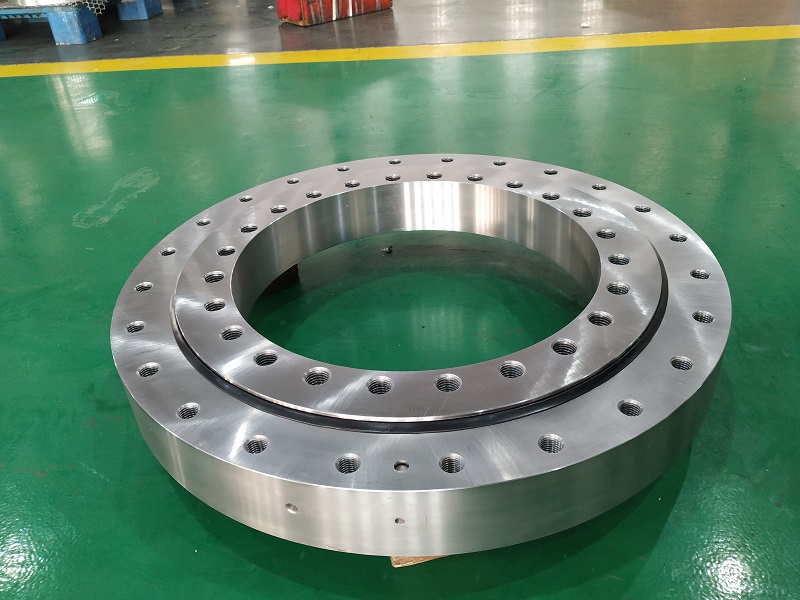

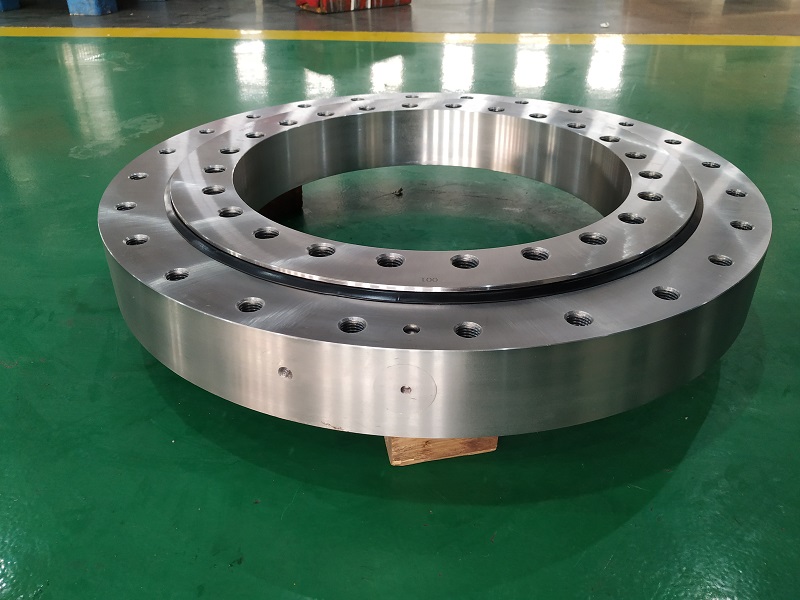

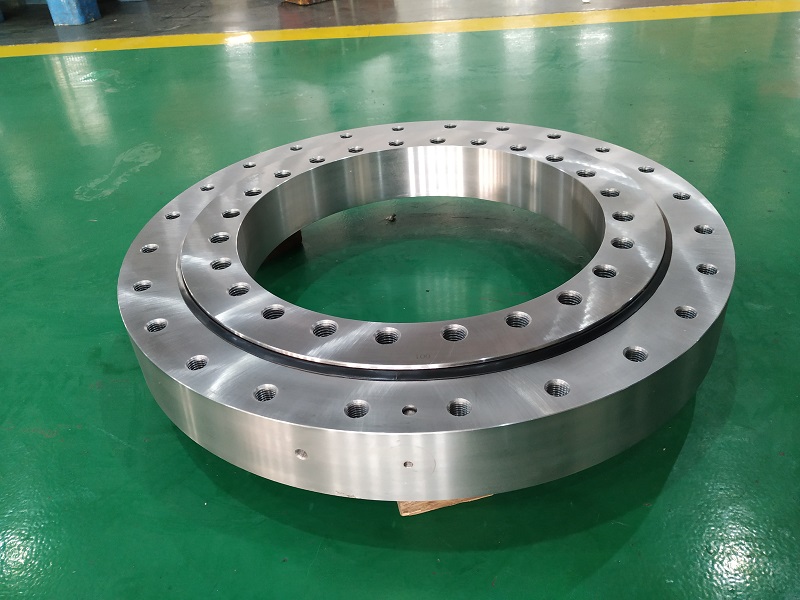

Slewing ball bearing 010.35.559 for Material Stacker Reclaimer machine
Turntable ball bearing 010.35.559 with size 431.8x695.452x90.932mm can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Slewing bearing factory item: | 010.35.559 |
Boundary dimension metric size: | 432x695x91mm |
Full size inch size | 17*27.38*3.58 inch size |
Outer dia: | 695 mm(17”) |
Inner dia: | 432mm(27.38”) |
Height | 90.932mm(3.58”) |
Oil nipple | yes |
Package | Wooden case |
Lubrication type | Grease |
Outer ring and inner ring material | 42CrMo,50Mn |
Rolling elements | Ball |
Ball material | GCr15 |
Seal material | NRC |
Seal | Double seal |
Teeth | Without teeth |
Service | Offer drawing or service support |
Application | hoisting, mechanical handling and general mechanical engineering |
