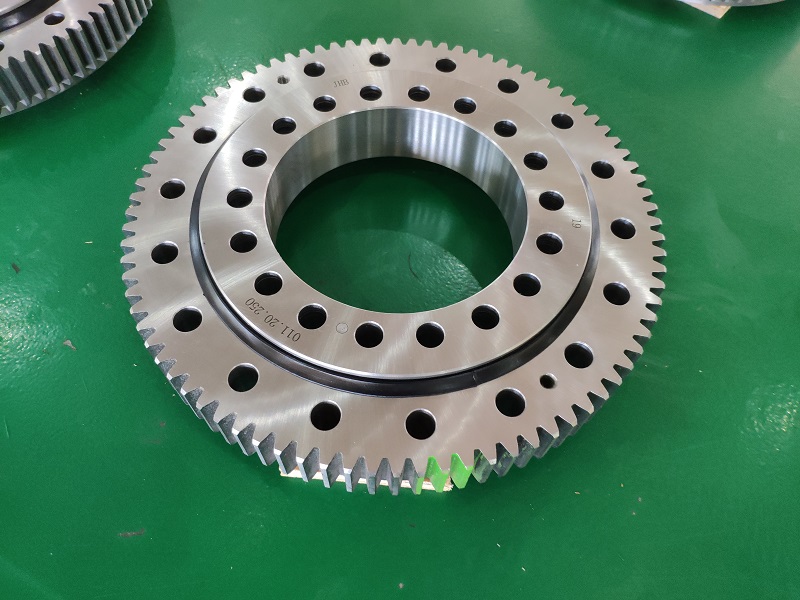

Slewing ball bearing 011.20.250 352x170x60mm in stock
The standard bearing type 011.20.250 belongs to four point contact ball bearing with external teeth. external gear teeth, select able internal clearance, sealed, lubrication nipple on circumference of ring without teeth.
Slewing bearing type | 011.20.250 |
structure | Four point contact ball turntable bearing |
Dimension: | |
Outer dia： | 352 MM |
Inner dia： | 170 MM |
Height： | 60 MM |
Outer ring hole qty | 18 pcs |
Inner ring hole qty | 18 pcs |
Outer ring and inner ring material | 50Mn,42CrMo |
Rolling elements | Ball |
Lubrication | Grease lubrication |
Seal material | NBR |
Double seal | Yes |
Lubrication type | Oil Nipple |
Clearance | C1 C2 C0 group |
Load | Axial and radial direction |
No of teeth | Z=86 |
Press angle | A=20 degree |
Modification coefficient | X=0 |
HS code | 8482109000 |
package | Wooden case |
