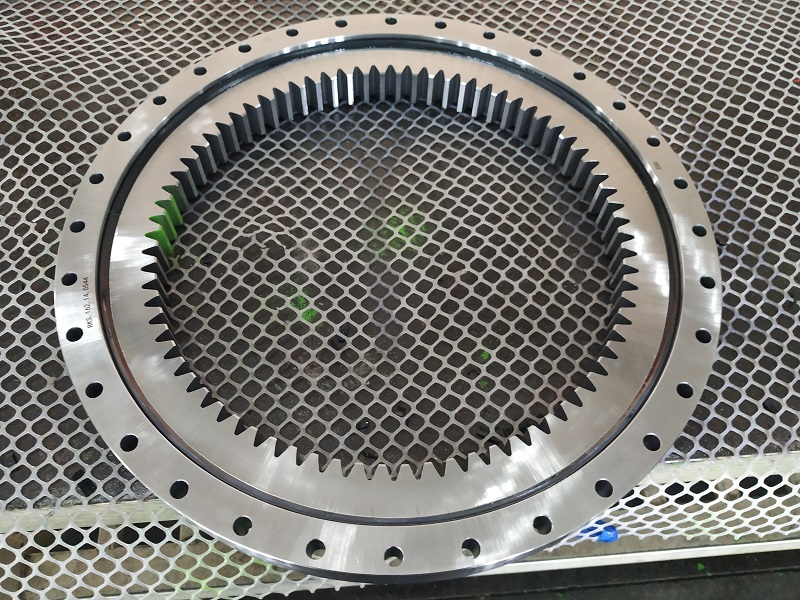

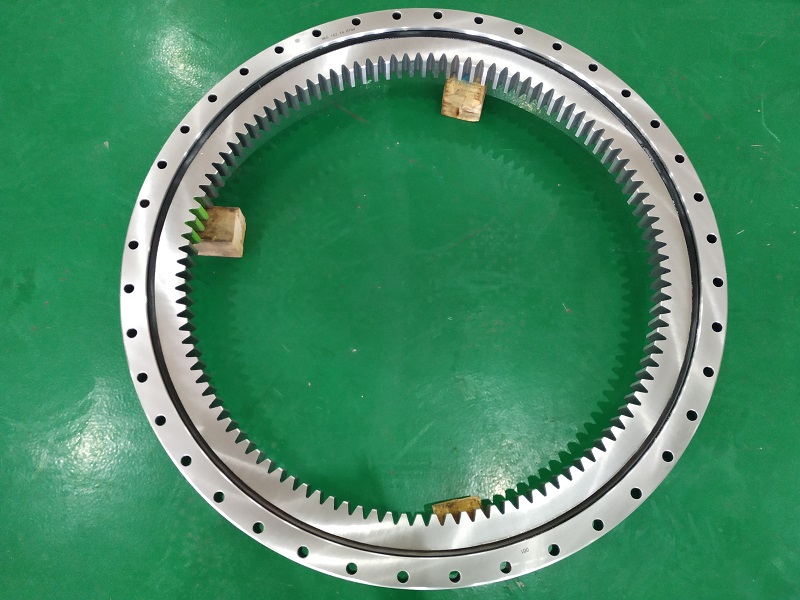

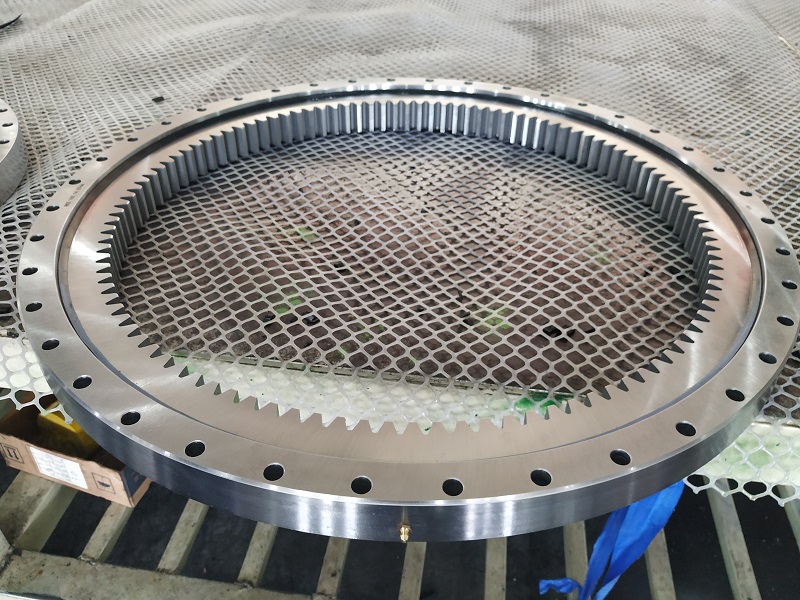

Slewing ring teeth bearing 585DBS164y spur gear for crane equipment

The slewing ball bearing 585DBS164Y can accommodate axial load and radial loads.

The bearing 585DBS164Y has size 810*585*85 mm lubricated are pre-greased in factory and can re-lubricated by grease holes.

Structure:Four point contact ball slewing bearing

Bearing items: 585DBS164Y,585dbs164y

Bearing teeth: with internal teeth

Teeth shape:spur teeth

The bearing full size:810X585X85mm

The outer diameter:810mm

The inner diameter:585mm

The bearing width:85mm

Lubrication:Grease lubrication

No of teeth:75pcs

Press angle:20 degree

Modification coefficient:x=0.5

Material:4140 material ,42CrMo,50Mn

Teeth grade:AGMA 8 Grade

The delivery time:50 days

The bearing package:wooden case

The bearing shipping term:By sea by air available
