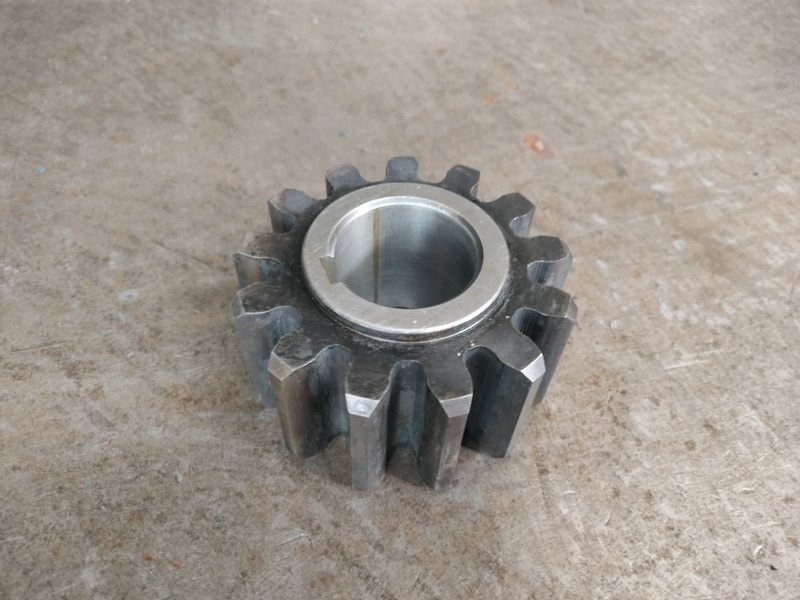

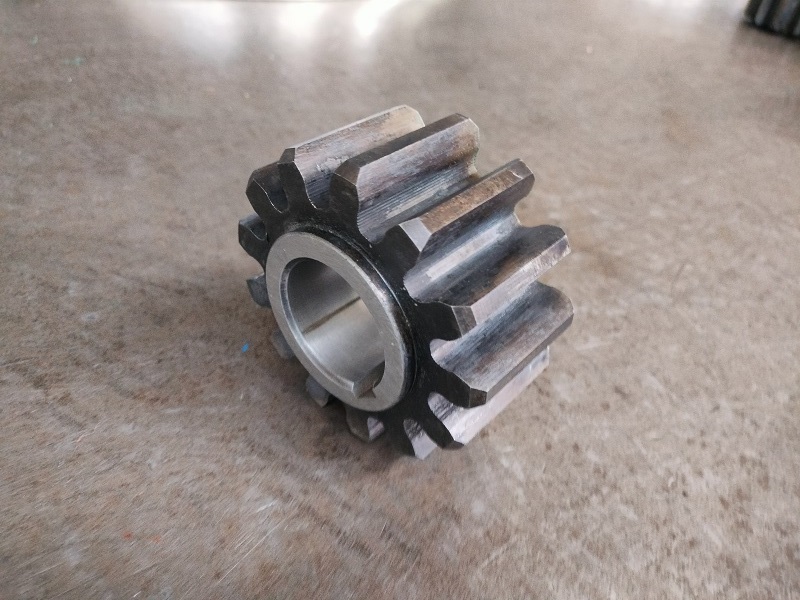

Spur Gear with external teeth 13pcs shaft diameter 55mm
The small pinion gear teeth will matched four point contact slewing bearing with internal teeth. The pinion will drive by motor. The number of teeth 13pcs
Structure:small pinion teeth
Milled teeth.
Tooth quality 8d25 DIN 3967.
Pressure angle 0°
The matched bearing code RK6-22N1Z
Material Steel 42CrMo,stainless steel
Tooth quality: 8 class
Surface: Blank
Module:6.35
Hardened: queching and tempering heat treatment
No. of teeth:13pcs
Tooth width:73mm
Bore diameter :55mm
HS code:8483409090
Package:strong wooden case
Manufacture time:50 days
Shipping term: by sea or by air
