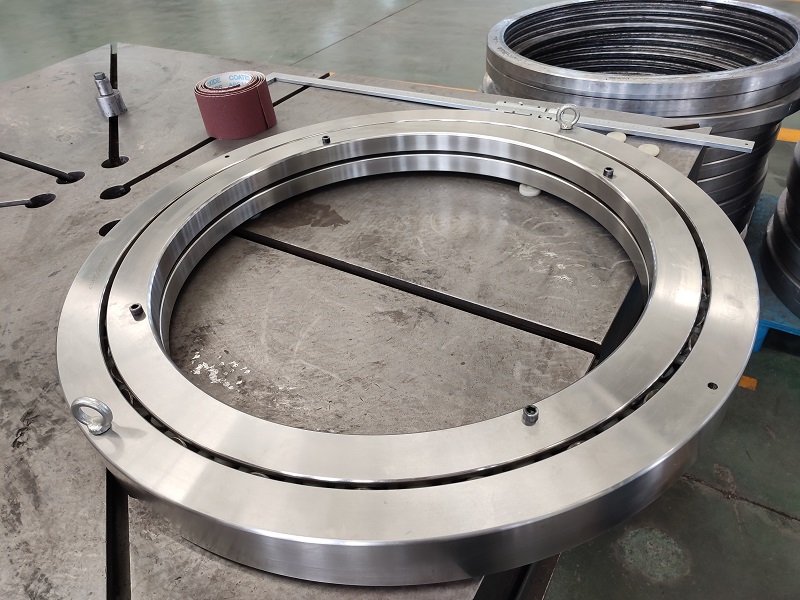

XR855053 Bearings 685.8*914.4*79.375mm for CNC boring machines
Crossed roller bearing code: XR855053
Bearing XR855053 metric Dimension:685.8x914.4x79.375mm
Outer dia:914.4 mm
Inner dia:685.8 mm
Height:79.375 mm
Precision garde:P4 P5 Available
Bearing xr855053 full size:
Bearing outerside diameter:36inch
bearing inside diameer:27 inch
bearing width:3.125 inch
Load capacity:
Radial load:270KN
Axial load:343KN
Bearing weight:150 kgs

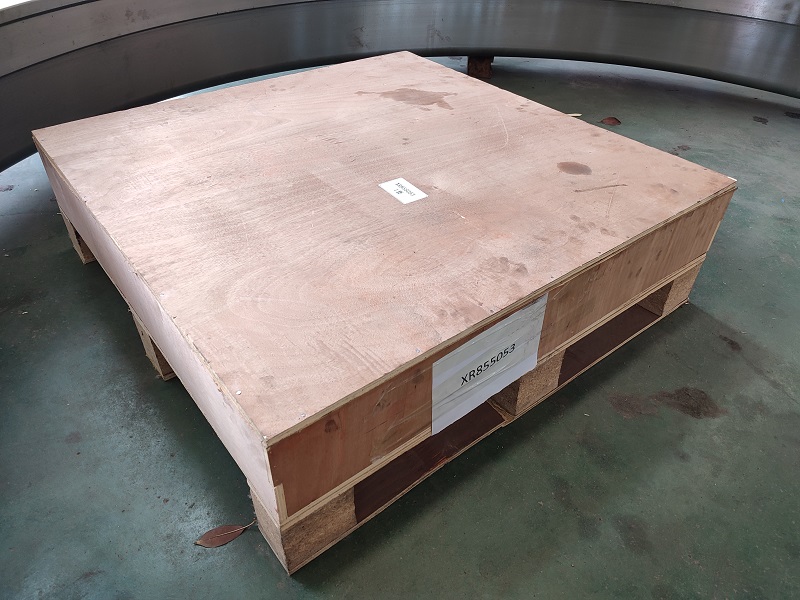

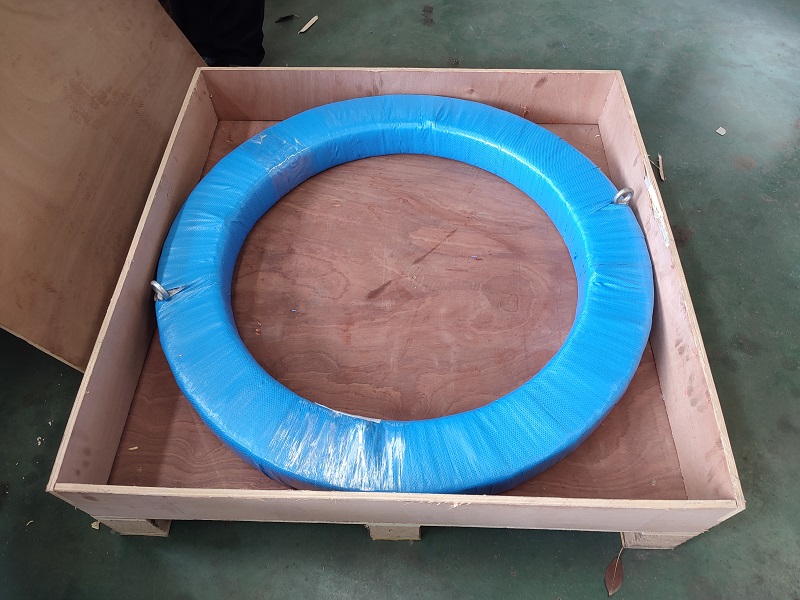

Package:wooden case
Bearing XR855053 application:machine tools,including vertical boring,grinding machines, precision circular dividing table,gear hobbing machine ,turret and industrical robots.
